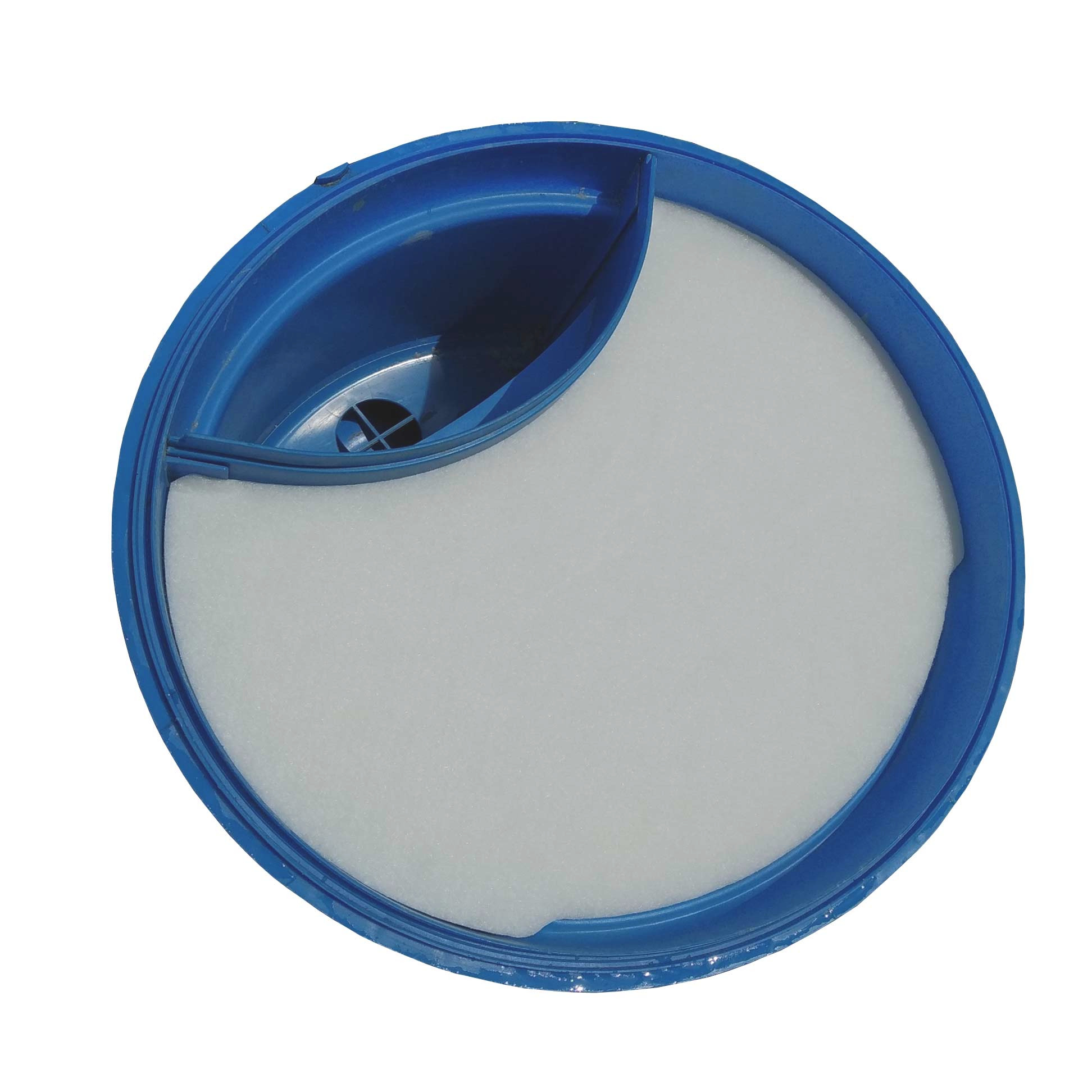

Round filter 380 with a shaped cut-out

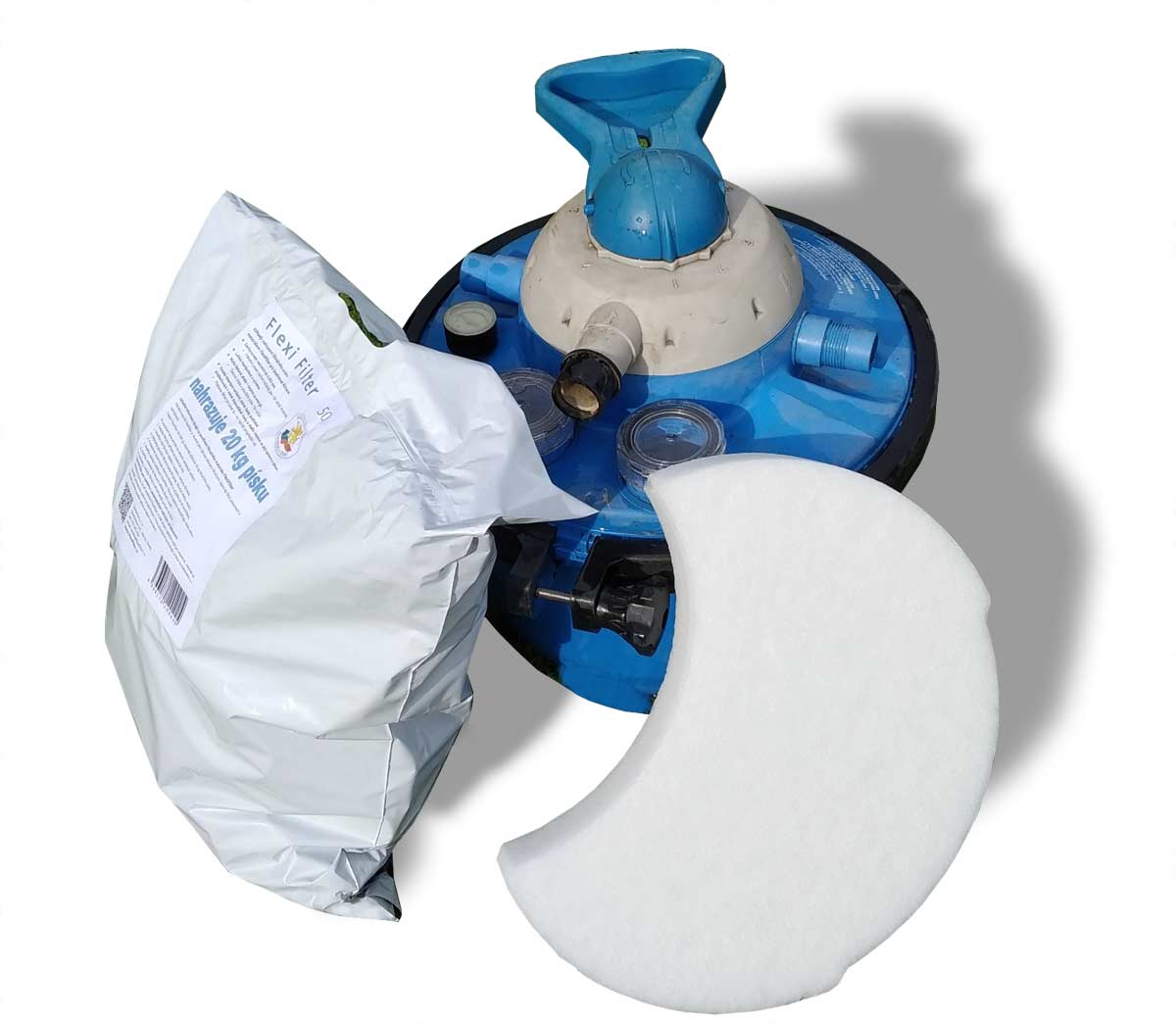

The FlexiFilter filter material is suitable as a replacement for common filter cartridges for sand and cartridge filters. The FlexiFilter 380 package contains round filters of ø38 cm with a shaped cut-out (4.5 cm thick).

Description

The FlexiFilter filter material is suitable as a replacement for common filter cartridges for sand and cartridge filters. The FlexiFilter 380 package contains round filters of ø38 cm with a shaped cut-out (4.5 cm thick).

  • When used alone, it is possible to stack several round filters on top of each other in the filter housing.
  • A “FlexiFilter 50” filter cartridge is recommended as an accessory part of the filter. It is designed for a deep filtration of liquids. The round filter ensures the overall efficiency of the filtration, the “FlexiFilter 50” cartridge ensures the volume capacity of your filtration.

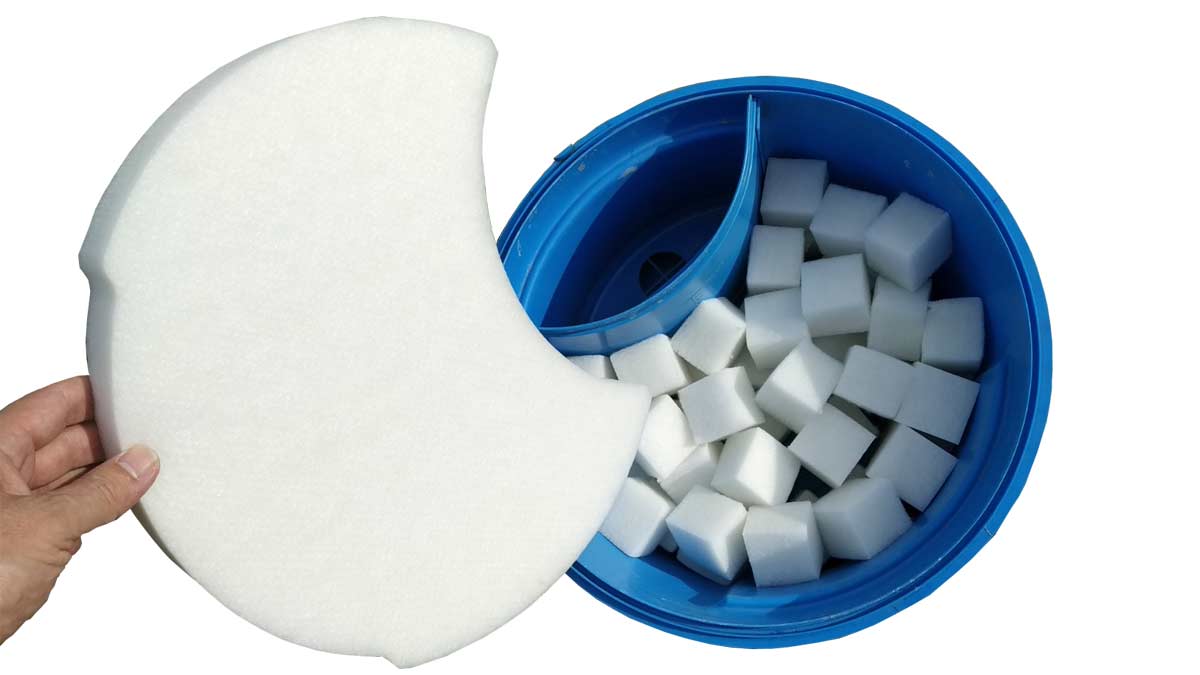

    If you combine the cartridge with FlexiFilter 50 cubes, insert the round filter as the last layer. Never fill the filter housing completely.

FlexiFilter is a highly efficient filter for industrial and domestic use. FlexiFilter is a filter material with an excellent efficiency. It has a higher filtration capacity compared to traditional sand, cartridge, and other filters. Thanks to a deep filtration, it absorbs a larger number of impurities. The material is lightweight for easy handling. FlexiFilter works with a very low pressure drop.

The right size choice

In the pool skimmer, the round cartouche of the pre-filter is inserted either into the space of the housing (the diameter marked in red in the photo) or into the deep sieve basket (the dimension marked in yellow in the photo). Please make sure that the material does not interfere when opening the skimmer door. Always choose a slightly larger pre-filter diameter than the measured dimension.

Benefits of FlexiFilter:

  • Trapping of impurities of up to 0.003mm.
  • Easy handling and replacement.
  • A low pressure drop = energy savings
  • High absorption of impurities by a depth filtration.

Delivery time: dispatch 1-14 days from order confirmation (based on the stock).
Delivery: The products are delivered by a delivery service provider.
Warranty period: 24 months.

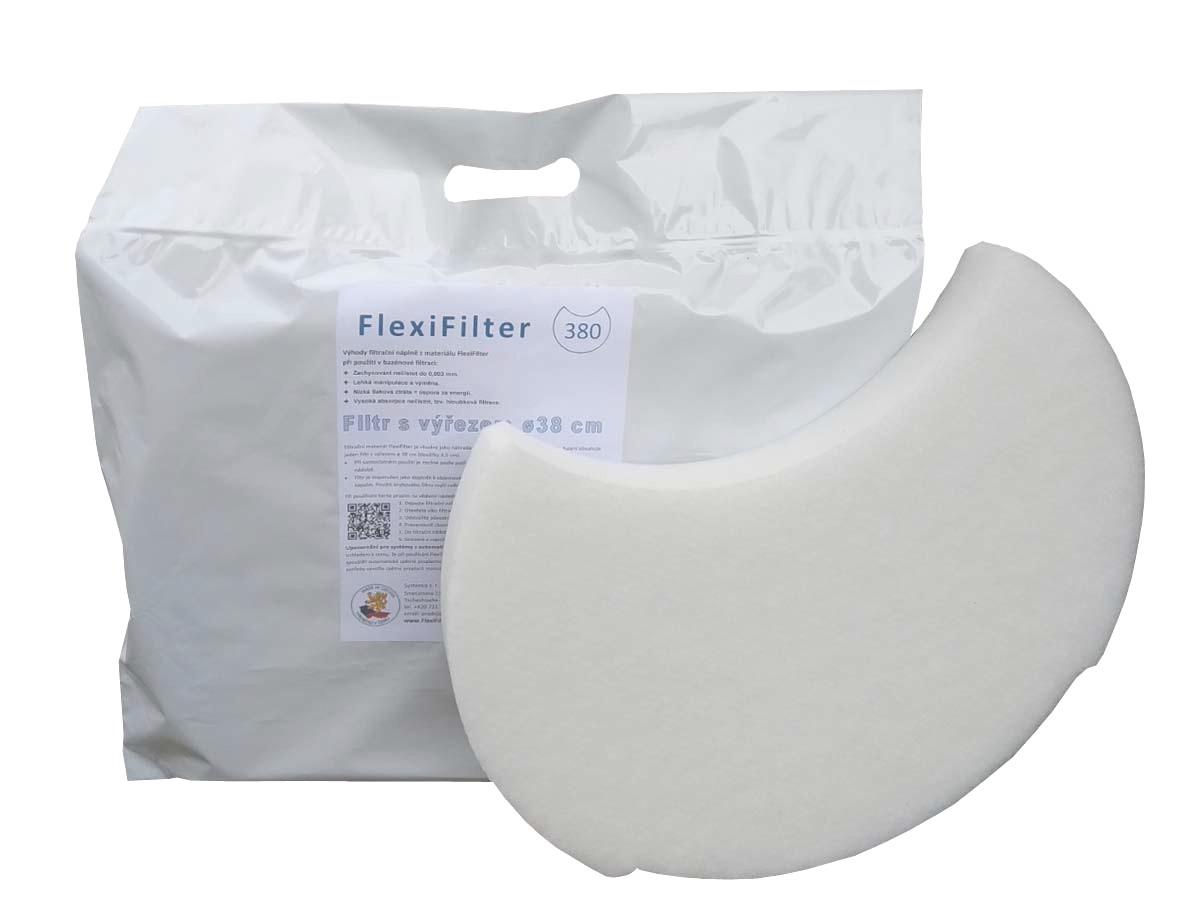

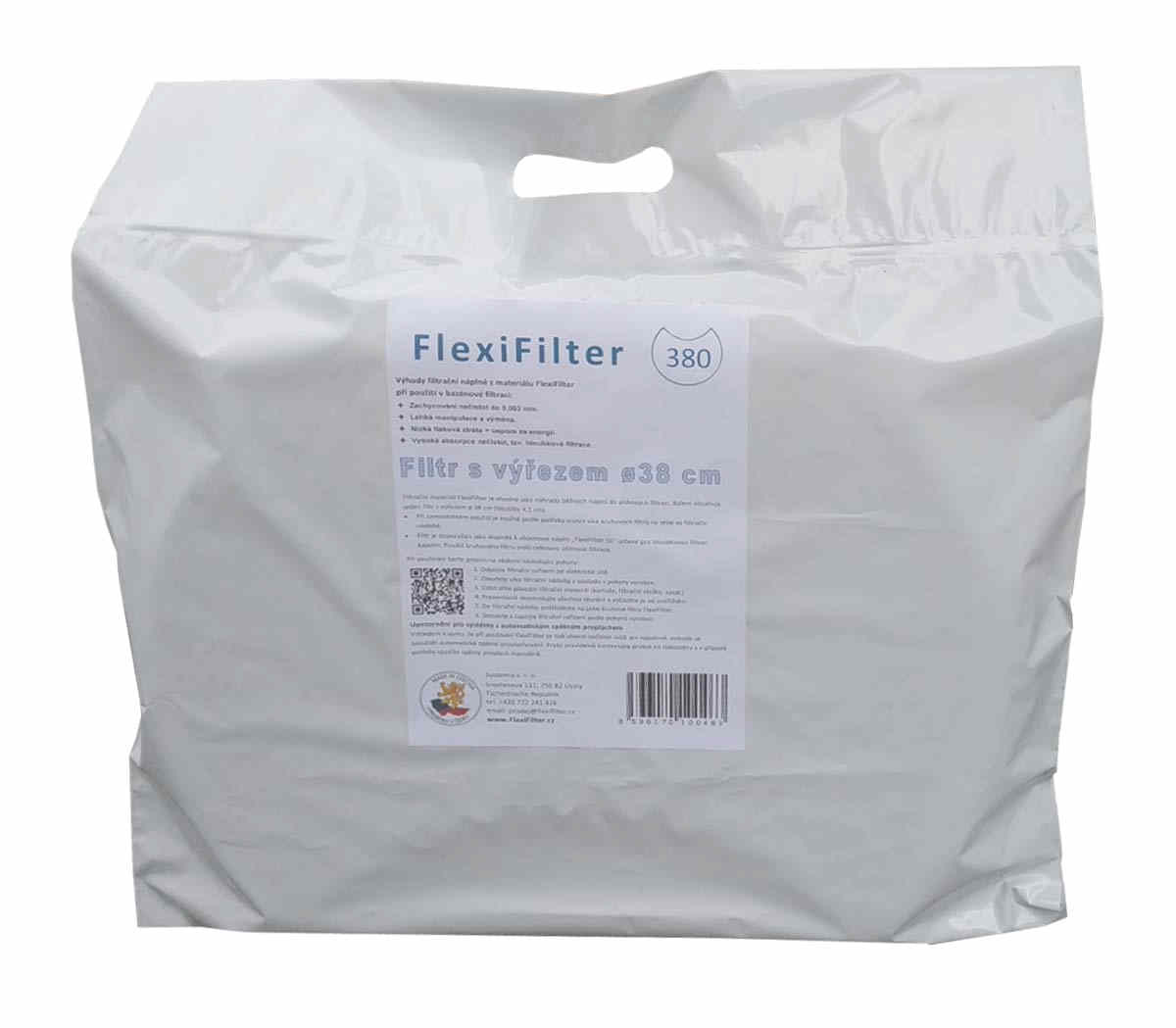

Packaging: the transport bag contains 1 piece of a round filter of 38 cm diameter with a shaped cut-out.

Instructions for use
Please note the following instructions when using:

  1. Disconnect the filter device from the power supply.
  2. Open the filter housing lid according to the manufacturer’s instructions.
  3. Remove the original filter material (cartouche, filter inserts, etc.)
  4. As a precaution, check all seals and clean them of dirt.
  5. Place the FlexiFilter round filters in the filter housing. If you combine a cartridge with FlexiFilter 50 cubes, insert the round filter as the last layer.
  6. Assemble and connect the filter device according to the manufacturer’s instructions.

Note for systems with automatic backflushing:
As the FlexiFilter pressure increases only slightly due to the dirt, automatic backflushing will not be triggered. Therefore, check the flow rate on the pressure gauge regularly and if necessary, start the backflushing manually.



Additional information

Weight 1,256 kg
Dimensions 50 × 40 × 5 cm
